How does work solar energy | Know the basic concept

The contribution of solar energy can play an essential role in the total energy supply of the world. In some countries, solar energy is being used in places such as homes, airports, which relieve lifetime electricity bills, as well as being a positive step for the green environment. Therefore, today we will learn about the basic concept of how does work solar energy.

Some countries in the world use solar energy, but 100% solar power is used at two major airports in India, Kerala Kochi Airport and Netaji Subhash Chandra Bose International Airport in Kolkata. Earlier, both the airports had to pay electricity bills worth crores of rupees annually.

So with the help of solar energy, both these airports save the environment from pollution, as well as money. It requires more investment once, which is slightly higher. But it is the best option for long term energy consumption. So let’s know about silicon used in solar panel.

Silicon in Solar Energy

To use solar energy, we need silicon, which is commonly identified as a metalloid, and this silicon is made only from sand, which is abundant on Earth. The sand is heated in a furnace with carbon at a temperature of 2000 ° C to obtain raw silicon.

Then undergoes a complex purification process that the raw silicon is converted into a gaseous silicon compound and then mixed with hydrogen to obtain a highly pure polycrystalline silicon, which is used to get solar energy.

Silicon structure electrons have no freedom of movement. Silicon is used as a semiconductor, the outer cell of silicon, which has four electrons. So silicon is doped using aluminium and phosphorus atoms to move the electron. Aluminium has only three electrons, and phosphorus has five electrons. Before knowing how does work solar energy, it is important to know about the ‘P’ &’N’ type region.

‘P’ & ‘N’ type region in the Solar Panel

To make the study more intuitive, we have to understand the structure of silicon crystals. The structure of a silicon crystal consists of four electrons, and the phosphorus atom of five valence electrons are injected (dope) into silicon. Here an electron is free to move in this structure.

These parts of silicon are called negative type (n-type) regions. Three valence aluminium electron atoms are injected into silicon, and this part is called the positive type (P-type) region.

When aluminium is injected into pure silicon, Then small holes are formed in that province because aluminium has three electrons. Thus this region is known as ‘P-type’ region. These ‘p-types’ of doped material join together, some electrons from the n-region will move to the ‘p-type region’ and fill the holes available there.

P-N Junction (Depletion Part)

When the sunlight falls on the thin n-type region, the photon acquires energy, and the electrons are free to move and try to move to the p-type region to fill the holes. In the P-type region, holes are made by injecting aluminium, known as doping system. Similarly, phosphorus is injected into pure silicon, which has five electrons; thus, one electron is free to travel.

SOLAR ENERGY

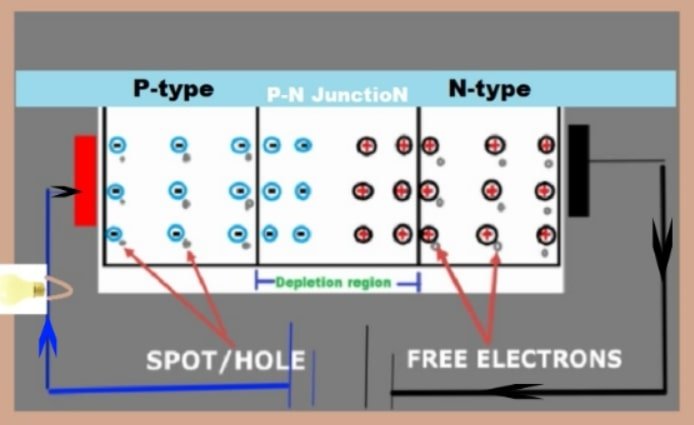

But at the centre of both regions (P-type & N-type), a layer is formed which has no holes or free electrons, which is called a P–N junction. Thus, an adverse order or electric field is formed in the two regions. Therefore the electrons here creates driving force with the help of a Depletion layer

Know a little more, and the holes then become slightly positively charged to the side boundary due to electron migration. The P-type side becomes a negatively charged electric field; this electric field between these charges creates the necessary driving force with the help of the P-N Junction.

In other words, it can be said that, to form a depletion layer in P N junction, the holes in p-type moves towards the electron in n-type and vice versa, which result in neutralization. Due to this, a layer is formed, i.e., ‘Depletion layer‘. So now let us know how does work solar energy.

How does work solar energy?

Here, from the electrons and holes in the depletion region, we see that as the concentration of electrons in the end region and the spot or holes in the P region increase, a potential difference develops between them, as soon as we add any load between these regions, Electrons start flowing through the load.

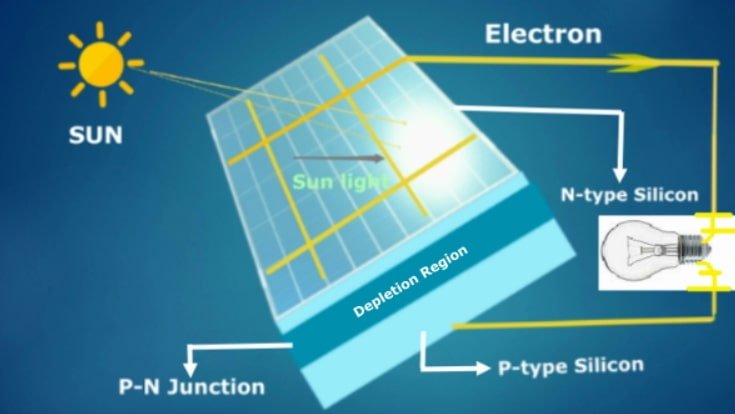

Let us understand this in simple ways. Here when sunlight falls on the thin ‘n-type’ region, negative electrons move towards the ‘P-N junction‘ due to the excess of one negative type of electron.

The depletion zone or p-n intersection does not help in transferring negative electrons. In this way, negative and positive forces in both regions create the driving force. But on the other side, a wire is attached to transfer electrons, and this negative electron enters this wire and tries to reach the P-type region randomly.

But here another wire is connected to the p-type region. If you place a bulb and switch here, the bulb will turn on, because the moving electrons are the ‘electricity’. The above paragraph explains how does work solar energy, but now we will also know what are solar cells, solar modules, solar plants.

How does work Solar cell?

But the problem is that sunlight should only be on the ‘N’ region’ as the electrons come out from the ‘N region’. Now this problem solved in this way. ‘N’-type is placed in the upper side, and it is heavily doped; it is thinner than ‘P’-type. The P-type region is thicker, doped lightly, and placed in the lower area.

Therefore, as the sunlight falls on the N-type region, the light heats the N-type region, and a large number of negative-type electrons begin to move towards the positive P-type region.

How does solar energy works
SOLAR CELL

But here the depletion area does not support electrons to move towards the P-type region, and electrons start moving in the opposite direction, where electrons travel through a connected wire towards the ‘P’ region.

In this way, the ‘direct current’ generated by the n-type region. It can now be stored in a battery or converted to AC by inverters using this direct current.

The P region is thick and lightly doped and is meant to enhance cell performance. The thickness of the depletion region also is very high as compared to the previous case, and this means that the light-strike produces electron-hole pairs over a wider area than the endpoint.

About Solar Plant

The government mostly installs the solar plant over a large area. It costs a lot to set up such a solar plant. So for this, a separate battery is not installed to store electricity, as it increases the cost.

However, in the case of solar power plants, the need for mass storage is generally not possible. A direct inverter is placed here which converts DC (direct current) to AC (alternating current) and reaches the nearest transformer.

It is then distributed directly to homes, offices through electric poles. Solar panels on the roofs of houses have the option to store electricity with the help of batteries and solar charge controllers.

Solar Panel Structure

The solar panel a single PV cell produces only around 0.5 volts. Here the details of the solar cell structure.

Photovoltaic (PV) Cell: The PV cell or solar cell in the solar panel consists of a single section, which produces only 0.5 volts.

Solar Module: Therefore, many solar cells are connected to increase the voltage here, which is called a solar module. This solar module is usually a group of solar cells, connected by copper wire.

Solar panel: If we connect many solar modules in one place, called a solar panel.

Solar Array: If we connect several solar panels, it is called a solar array. In this way, increasing the number of solar arrays creates a solar park. The combination of strings and parallel connection of the cells increases the current and voltage values to a usable range.

YOU MAY LIKE: How does data travel fast on the internet

MAINTENANCE: The solar panel always needs to be kept clean, as it is kept in an open space for sunlight; There will be a possibility of damage due to dust, mud, storm, rain. So, for this, both the sides of the solar cells are covered with the help of pseudomorphic glass (PMG) to protect them from shock, rain, mud, vibration, moisture, dirt etc.

POLYCRYSTALLINE VS MONOCRYSTALLINE: If the chemical process of pure silicon crystals is taken one step further, the silicon crystals will become irregularly. Polycrystalline cells change to monocrystalline cells and provide high electrical conductivity. But monocrystalline solar cells are used less for higher market prices.
